Gouly Permanent Outdoor Lights Smart RGBIC Eaves Lights IP68
GLMD193-RGB-36V
Gouly RGBIC Outdoor Lights offer a vibrant lighting experience with thousands of scenes and up to 16 million colors. Featuring a unique triangular effect, these lights are weather-resistant with IP68 waterproofing and a lifespan of 50,000 hours. The RGBIC technology allows personalized color control, with music synchronization and cloud smart app management. Easy to install and customize, these lights can be placed on eaves, fences, or used in cabinets and closets, adding brilliance to your home and creating a festive atmosphere for Christmas parties
Quantity
Gouly's Permanent Outdoor Lights: A Symphony of Colors for Every Occasion!
Gouly RGBIC Outdoor Lights offer a vibrant lighting experience with thousands of scenes and up to 16 million colors. Featuring a unique triangular effect, these lights are weather-resistant with IP68 waterproofing and a lifespan of 50,000 hours. The RGBIC technology allows personalized color control, with music synchronization and cloud smart app management. Easy to install and customize, these lights can be placed on eaves, fences, or used in cabinets and closets, adding brilliance to your home and creating a festive atmosphere for Christmas parties
Product Name： | Permanent Outdoor Light | Model: | GLMD193 |
LED Qty: | 1PCS SMD5054RGB/RGBW | Color: | RGB / RGBW |
IC Type: | UCS1903 / UCS2904 | Voltage: | DC36V/ DC24V |
Power: | 1.44W/PCS | Waterproof rating: | IP68 |
Set: | 50 ft (36pcs)/set, 100 ft (72pcs)/set, 150 ft (108pcs)/set | Specification: | 3pcs/string, 12pcs/string |
Size: | 42*30.2*16MM | Material: | PC +silicone |
Warranty: | 3 year warranty | Operating temperature: | -40 to 60℃(-40°F to 140°F) |
Holiday High Lumens High Purity RGBIC Lighting:

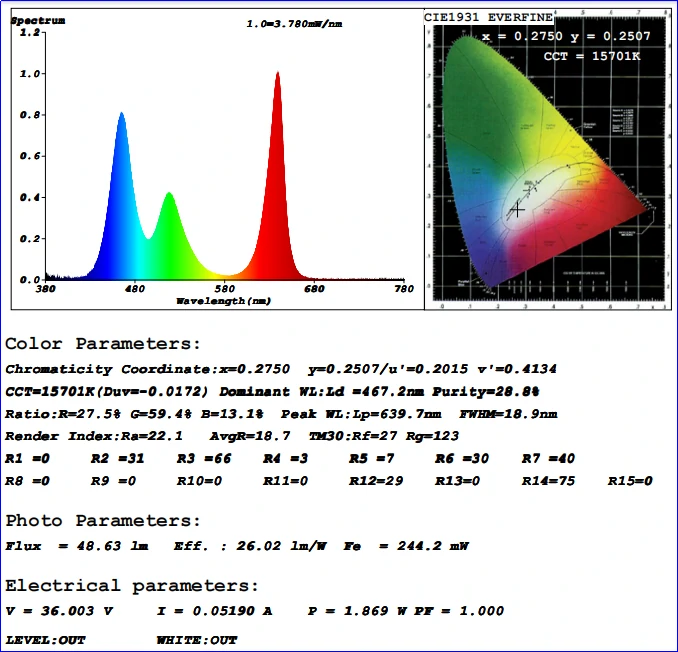

With up to 16 million colors to choose from and adjust, with high purity and brightness.Gouly's RGBIC technology allows you to personalize each section of your outdoor light strip to display more colors. Enhance the outdoors with Gouly's permanent outdoor LED pixel lights and make your house stand out in a variety of festivities, brightening up your garden and patio for Christmas parties. The following chart shows the results of the product lumen test report:
Seamless Flow Lighting Effect：
The single lens design creates a unique triangular lighting effect.90 degree glow and greater than 16 inches wall wash depth. It can make your house accent lighting more chic.

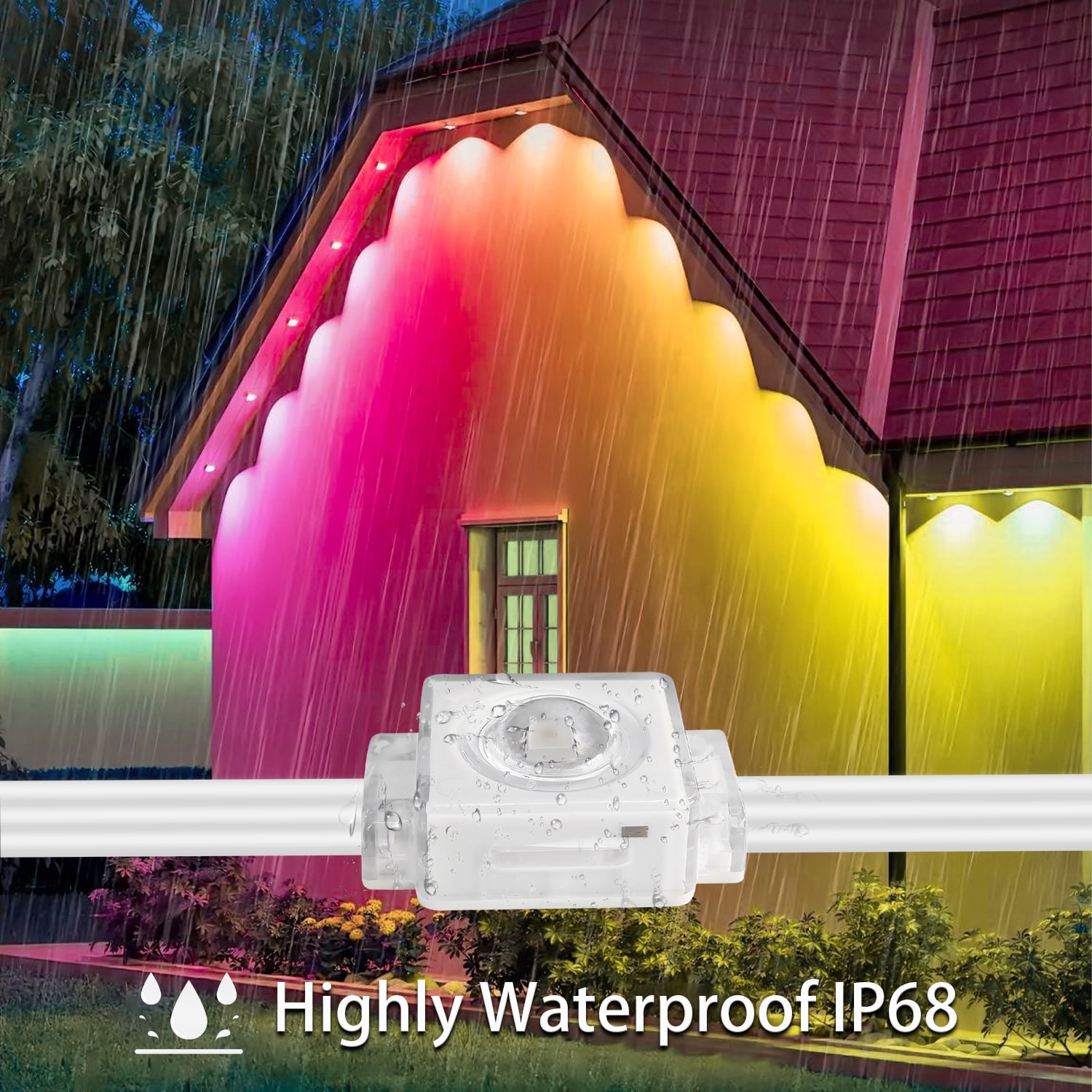

Outdoor Durability:
Made of original PC material with UV resistance and strong external resistance, the back is injected with silicone for anti-yellowing, high and low temperature resistance, no cracking, no thermal expansion and contraction. These high quality materials make the outdoor luminaire with IP68 ultra-high waterproof rating, equipped with multifunctional WiFi cloud controller and 4A Minwax power supply. With a year-round service life of up to 50,000 hours, it can operate in harsh weather from -40°F to 140°F (-40°C-60°C).

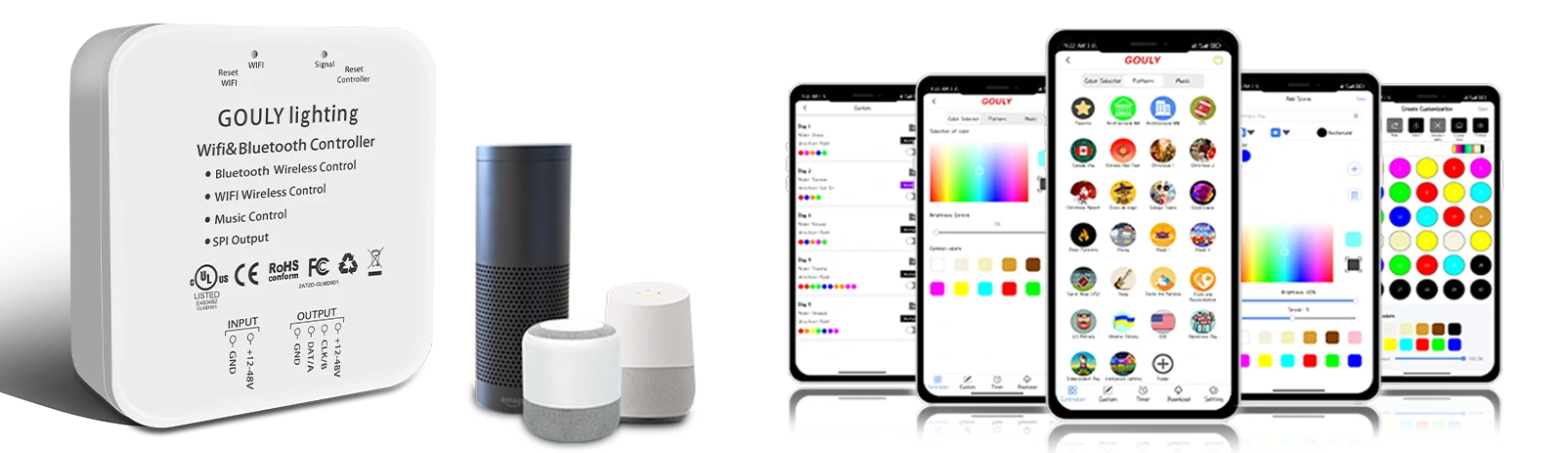

Cloud Intelligent APP Control:
APP built-in thousands of pattern presets, you can freely adjust the color, speed, brightness settings are patterns; with custom pattern creation, not only each light can be set a different color, or even set a different brightness; connect to the Gouly Lighting app via cloud WiFi Bluetooth to provide outdoor LED lights with music, intelligent voice control, adjusting brightness, speed, change colors and set timer functions. Cloud WiFi enables you to control your lights anytime, anywhere.

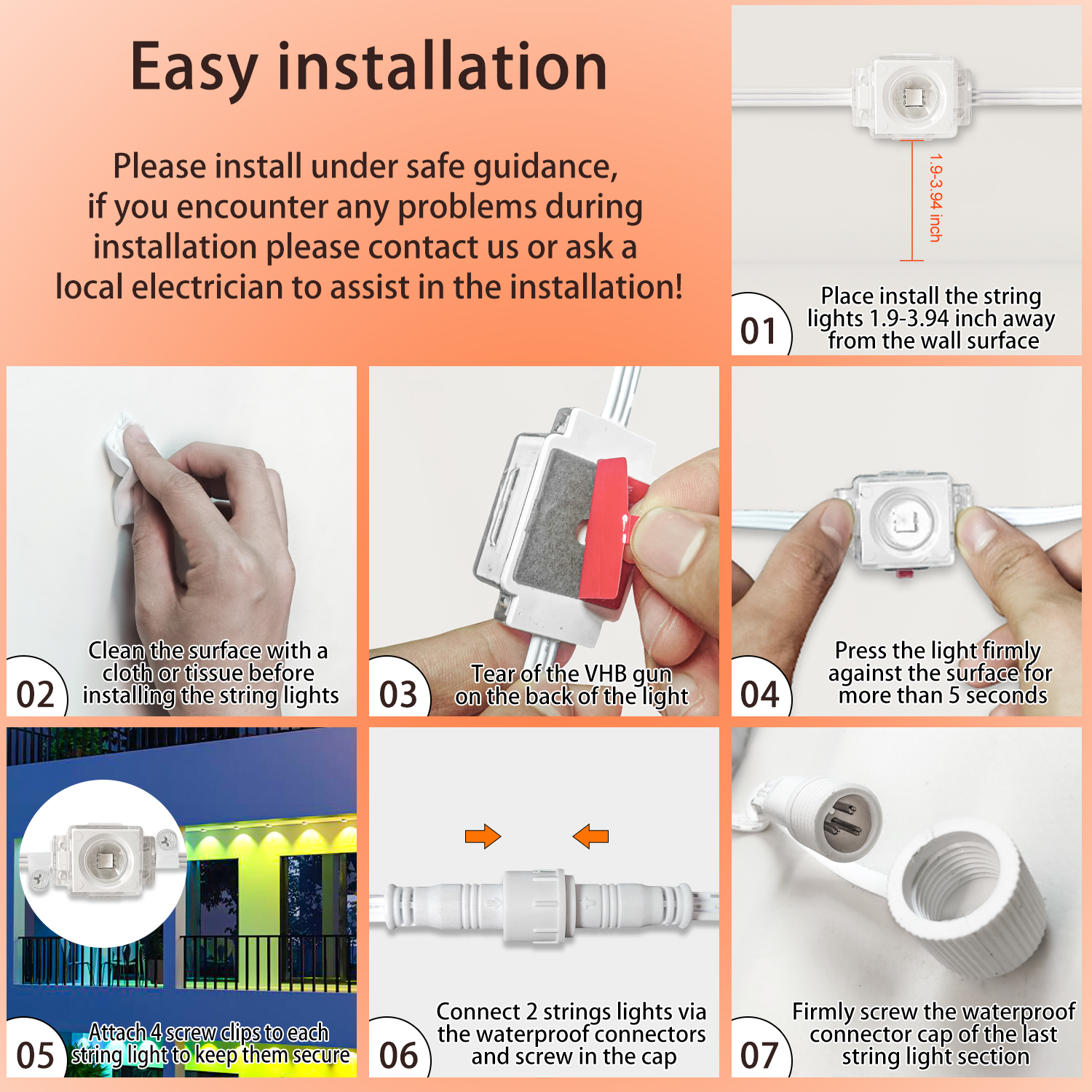

Easy Installation and Maintenance:
Each light is removable and replaceable to ensure a hassle-free installation. Parallel design ensures that one malfunctioning light does not affect the others and can be cut at will. Installation Method 1: The back has a super high adhesive red backing to help affix the installation, in addition to wire clips for reinforcing the installation;
Installation method 2: Aluminum channel mounting makes the mounting surface of permanent outdoor lights more neat, match with the house better and easier to install, the size, shape and color of aluminum channel can be customized according to the house.
We recommend the use of aluminum channel installation, the use of aluminum channel installation on the one hand can be more perfect match your house, on the other hand, is to extend and protect the service life of the lights, more resistant to wind and rain, frost and rain under the weather to the wires, lights brought about by the impact!
 | 1. Install the led light in the corresponding hole of the upper slot of the aluminum slot 2. Fix the lower slot on the wall and put screws in the front and back to fix it 3. Merge the upper slot and lower slot to make it fixed together and become a whole 4. Installation is complete, the aluminum channel can be cut according to the corner and length of the house |

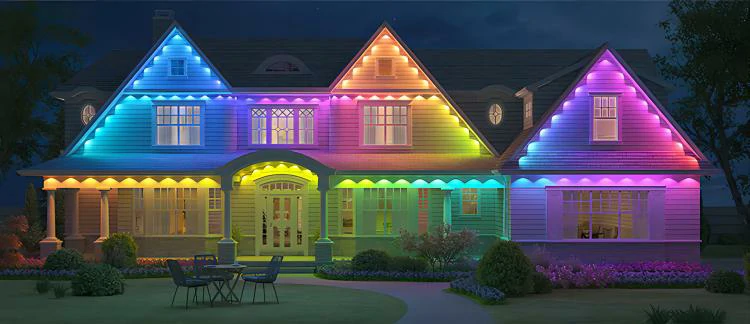

Decorate your home with a set of permanent outdoor lights designed for any occasion. They can be installed not only on cornices, fences or porches, but also in cabinets and closets to create visually pleasing home décor!
| Dimensional drawings(mm): | Connection diagram(mm): |
 |  |
Aluminum channel dimensional drawing(mm) | Aluminum channel installation connection diagram（mm） |
 |  |
Connection Diagram:
1.The connection diagram is shown in the figure above, after the length L of the point light source exceeds 5 meters, a power supply should be added in the middle to solve the pressure drop problem of the point light source.
2. Power Supply Selection: Select the appropriate driver as needed, depending on how many meters of power per meter you install the driver's output power. Under normal circumstances, there should be a 30% balance.
3. Positive and negative electrodes must be connected correctly.
4. Keep the power off till all installation and connection is done.
5. Operating area must keep away from high temperature.
